Insect Baculovirus Expression SystemIntroduction

The baculovirus expression system is a commonly used platform for the expression of heterologous proteins. It leverages the biological characteristics of baculoviruses and their replication mechanisms to express heterologous proteins in insect cells. Due to its stability and biosafety, this system has found wide application in biomedicine, agricultural biotechnology, and related fields.

The baculoviru expression system offers several advantages. First, it supports high-level and stable expression of heterologous proteins in insect cells. Second, proteins expressed through this system often retain their native structure and biological function, making the platform suitable for producing biopharmaceuticals, vaccines, and other biologically active products. Additionally, insect cell culture is relatively straightforward and cost-effective. Furthermore, baculoviruses are non-infectious to mammalian cells, enhancing the system’s biosafety.

KMD Bioscience has accumulated extensive experience in the field of Insect Protein Expression and has established a comprehensive Protein Expression and Purification Platform. We offer one-stop services covering the entire process. Our team of scientists brings deep expertise to each project, continuously optimizing reaction conditions to ensure high-yield protein expression using the Baculovirus Expression System. We are committed to delivering outstanding technical support and customized solutions for every customer.


The principle of the baculovirus expression system involves several key steps:

viral infection of insect cells, viral DNA replication, heterologous gene insertion, and protein expression. The process begins when the baculovirus binds to specific receptors on the surface of insect cells and enters the cells via endocytosis. Once inside, the viral DNA is released into the nucleus, where it undergoes replication to produce multiple copies. Through homologous recombination or other genetic engineering strategies, a gene of interest is inserted into the viral genome to generate recombinant baculovirus. As the recombinant virus replicates within the insect cells, the inserted gene is co-replicated and transcribed, leading to the expression of the desired foreign protein.

Key Features of Baculovirus Insect Cell Expression Systems


Commonly Used Insect Cell Lines

The most commonly used insect cell lines in baculovirus expression include Sf9, Sf21, and H5 (High Five).

1. Sf9 Cell Line

The Sf9 cell line is derived from the ovarian tissue of the fall armyworm (Spodoptera frugiperda). It is one of the most widely used insect cell lines, known for its rapid growth, high adaptability, and ease of transfection. Sf9 cells are highly susceptible to multiple viruses, including baculoviruses and herpesviruses, and are commonly used for viral replication and viral protein expression studies.

2. Sf21 Cell Line

Also originating from Spodoptera frugiperda, the Sf21 cell line exhibits distinct growth characteristics and application scopes compared to Sf9. Although it grows more slowly, Sf21 typically achieves higher protein expression levels, making it especially suitable for recombinant protein production and functional protein studies. It also demonstrates stronger resistance to certain viruses, allowing for investigations into virus-host cell interactions.

3. H5 (High Five) Cell Line

The H5 cell line is derived from the cabbage looper moth (Trichoplusia ni) and represents a relatively newer insect cell line. Compared with Sf9 and Sf21, H5 cells demonstrate faster growth rates and higher protein expression yields. These advantages make the H5 line highly attractive for applications in biotechnology and pharmaceutical production. Furthermore, H5 cells are susceptible to a variety of viruses, including baculoviruses, herpesviruses, and poxviruses, supporting their use in viral replication, protein expression, and virus-host interaction studies.

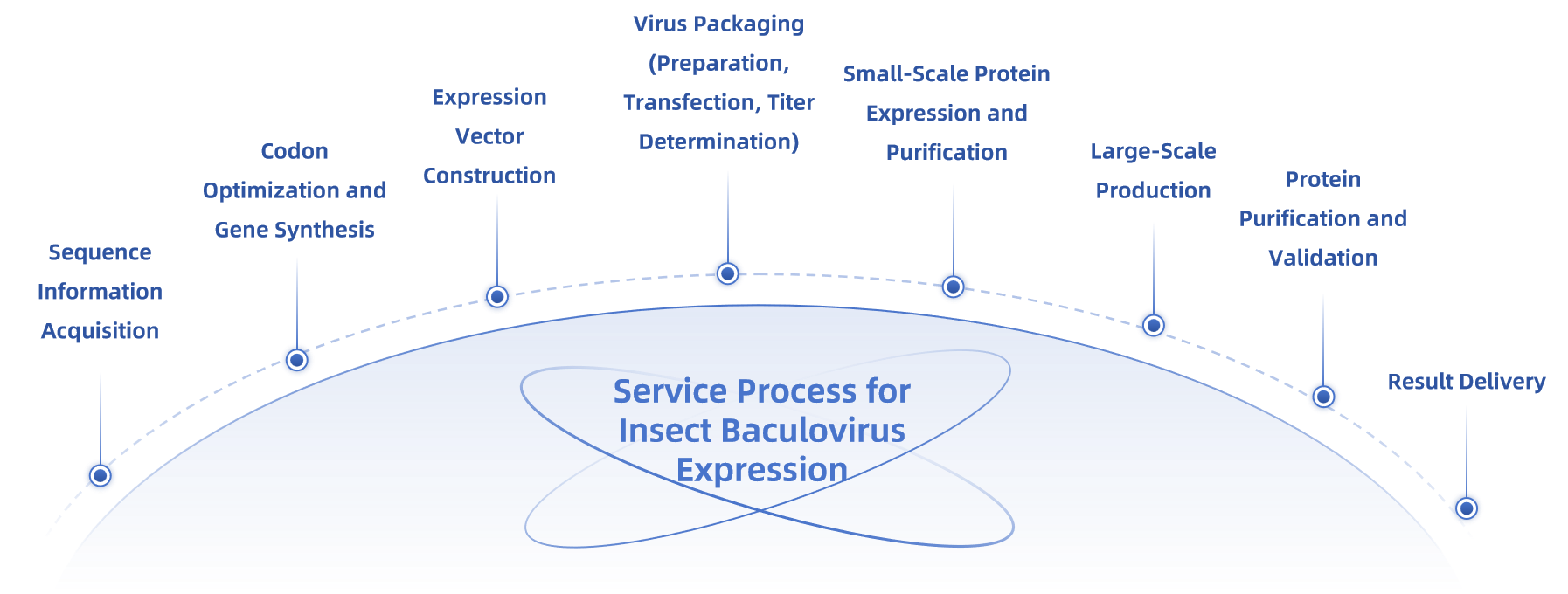

Baculovirus Expression Service Workflow for Insect Cells
