Fab Antibody Expression ServiceIntroduction

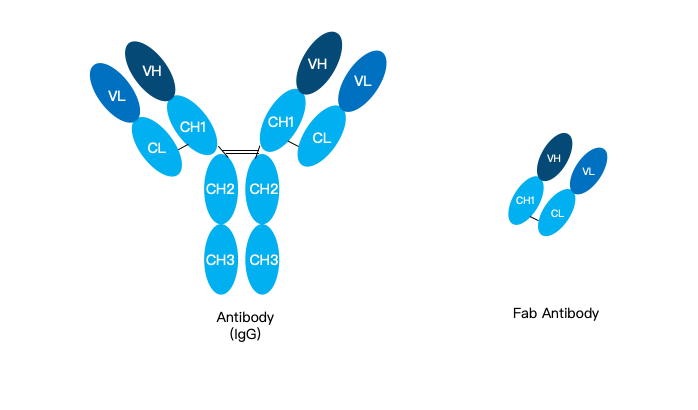

Fab, or antigen-binding fragment, constitutes the core functional domain of an antibody responsible for specific antigen recognition and binding. It is composed of one complete light chain and one heavy chain fragment, covalently linked by interchain disulfide bonds. With a molecular weight of approximately 47–48 kDa, the Fab fragment is roughly one‑third the size of a full‑length IgG antibody and is commonly obtained via phage display antibody library screening. Compared to intact IgG, Fab fragments lack the Fc region, which reduces nonspecific immunogenicity, and their smaller size confers superior tissue penetration capabilities. KMD Bioscience provides customized expression, purification, and functional validation services for Fab fragments, utilizing a range of platforms including phage display, mammalian cell systems, and prokaryotic expression. Our approach ensures the efficient production of Fab fragments with high purity and high bioactivity, supporting antibody drug discovery and in vitro diagnostic development.

截屏2026-07-14 18.06.11.png

Fab Antibody Expression Service Offerings

KMD Bioscience has deeply integrated its established recombinant antibody expression services with phage display technology, enabling the production of recombinant antibodies spanning diverse origins, including fully human, humanized, chimeric, and murine antibodies. Based on the host cell type, protein expression systems are broadly classified into prokaryotic and eukaryotic systems. Among these, the prokaryotic system employs E. coli as the host, offering advantages such as simple handling and low cost, allowing for large‑scale production of Fab antibodies within a short turnaround time. By optimizing process parameters—including induction duration, expression temperature, and inducer concentration—we ensure that Fab antibodies are expressed in a soluble form while retaining full biological activity. Eukaryotic expression systems encompass a variety of hosts, including mammalian, yeast, and insect cells, which enable post‑translational modifications and yield Fab antibodies with structural and functional properties closer to their native state. Furthermore, through targeted engineering of expression vectors and systematic optimization of the expression system, we can further enhance the expression titers and purification efficiency of Fab antibodies.

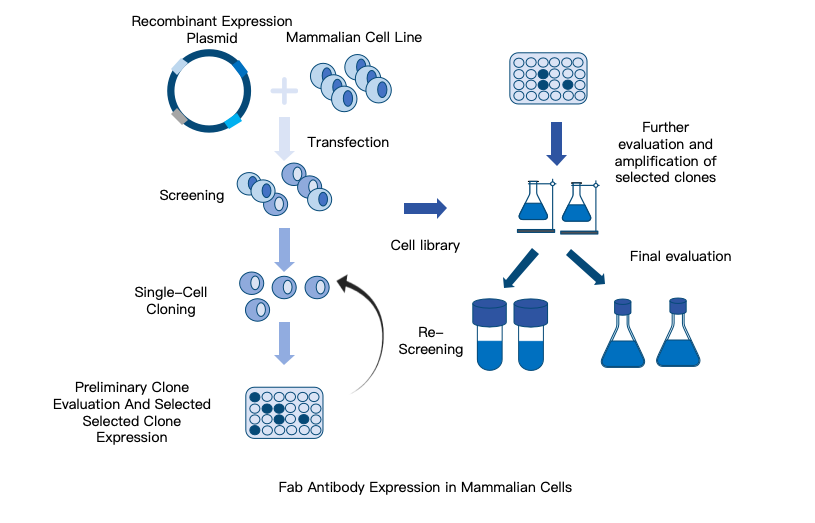

Mammalian expression systems typically employ either transient or stable expression strategies. These systems closely mimic the natural expression and modification processes of proteins, and leverage highly efficient transcription and translation machinery to achieve high‑level production of the target protein. KMD Bioscience utilizes well‑established mammalian cell lines such as HEK293 and CHO, and systematically optimizes multiple parameters including media formulations, expression vector elements, and transfection conditions. This enables scalable production of Fab antibodies suitable for drug development and biopharmaceutical R&D, ensuring that the final products exhibit both high biological activity and excellent batch‑to‑batch consistency.

截屏2026-07-14 18.06.41.png

Service flow

Steps

Services

Periodicity

Fab gene amplification/codon optimization and synthesis

Fab genes that have been screened are amplified by PCR or Fab genes with known sequences are codon optimized and synthesized

4 weeks

Recombinant plasmid construction

Recombinant construction of Fab gene in a suitable expression vector

2 days

Fab antibody expression

Mammalian Expression Systems

E. coli Expression Expression System

Rodent virus/insect cell protein expression

Yeast Cell Expression Systems

2-3 weeks

Expression verification

Validation of the expressed antibodies by SDS-PAGE and Western Blot

1 day


Advantages of KMD Bioscience Fab antibody expression service

--Fab can be expressed through mammalian cells with high protein yield.

--Expression of Fab antibody with strong activity and good specificity.

--Soluble Fab antibody can be expressed in large quantities through E. coli system.

--Functional study of Fab antibody in vitro and in vivo

--Can humanize Fab

--Synthetic and semi-synthetic Fab antibodies can be expressed

KMD Bioscience can provide

Protein Expression System

Cell Lines

Advantages







Mammalian Expression System







Expi293F, FreeStyle™ 293F, CHOS, CHOK1, 293T, etc

Enables proper protein folding and complete post‑translational modifications, yielding proteins that most closely resemble native structures and functions









E. coli Expression System









BL21, Nissle 1917, Rosetta, etc

Features short growth cycles, low culture costs, and scalable production, making it ideal for the efficient expression of prokaryotic‑derived proteins, industrial enzymes, antigens, and more











Baculovirus/Insect Cell Expression System











Sf9, Sf21, Tn368, and High Five™ cells

Supports simultaneous expression of multiple genes, facilitating the correct assembly of multi‑subunit protein complexes; achieves high yields of both intracellular and secreted proteins, suitable for the production of vaccines, antigens, and structural proteins











Yeast Expression System









Pichia pastoris, Saccharomyces cerevisiae, Yarrowia lipolytica, etc

Combines the high expression titers and cost‑effectiveness of prokaryotic systems with the post‑translational modification capacity of eukaryotic systems, making it well suited for large‑scale industrial protein manufacturing
